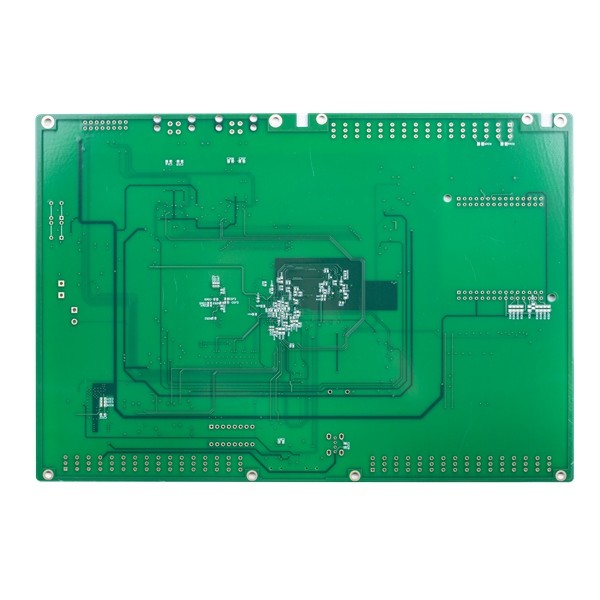

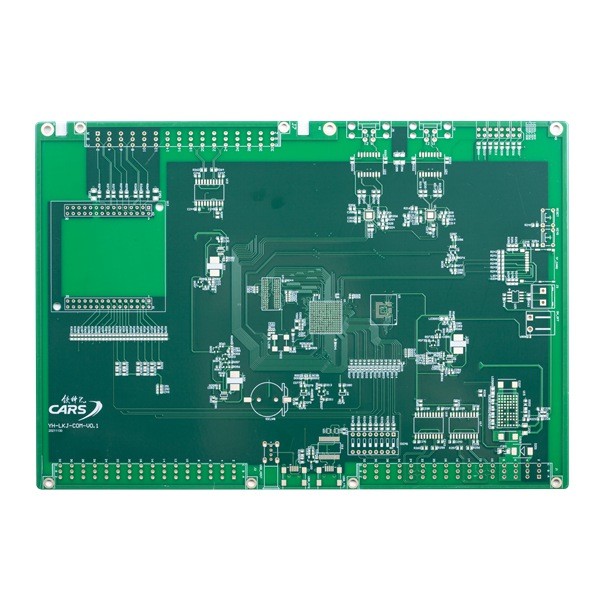

BGA Hdi Printed Circuit Boards Immersion Gold 1.6mm 6 Layer FR4
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 6L 2+N+2 HDI Printed Circuit Boards | Marterial | FR4 TG170 S1000-2 |
|---|---|---|---|
| Surface Finished | Immersion Gold | Board Thickness | 1.6mm |
| Copper Thickness | 1/1/1/1/1/1OZ | Min.PCB Track/gap | 3/4mil |
| Solder Mask | Green | Smallest Mechanical Drilling Hole | 0.15mm |
| Special Request | Impedance Control/0.25mm BGA | Applicationcommunications Products | HDI Buried Vias And Blind Vias, Two Step Stack Up /impedance Control/resin Filled |
| High Light | BGA Hdi Printed Circuit Boards,FR4 Hdi Printed Circuit Boards,1.6mm hdi pcb |
||
Product Description
BGA Hdi Printed Circuit Boards Immersion Gold 1.6mm 6 Layer FR4
HDI PCB Board HDI Circuit Board HDI Printed Circuit Boards HDI PCB Design PCB Board Manufacturing
6L 2+N+2 HDI Printed Circuit Boards
HDI stands for High-Density Interconnector. It is a special type of PCB that has the capability of high-density interconnections. It means that HDI boards has more wires or conduction lines per unit area, utilizing the most out of the space and offering a compact PCB.
HDI PCB has tightly packed interconnections, it saves a lot of space and offers more component density and it has the capability of making a circuit compact.
HDI boards are particularly attractive to portable, mobile, and portable electronics due to their slim, dependable performance and tiny size. HDI technology is a critical component of many of advanced technologies. The miniaturization of electronic components including PCBs has enabled manufacturers to produce smaller, more cost-effective devices without sacrificing performance or reliability.
They are largely used in Consumer Electronics, communication, Automotive and Aerospace,Medical Devices, and industry control products and other industries.
| Layer counts: | 6 layer | Circuit board laminate: | FR4 TG170 S1000-2 |
| Different Copper thickness: | 1/1/1/1/1/1OZ | PCB Board thick: | 1.6 MM |
| Smallest Mechanical drilling hole: | 0.20 mm | Min. line distance/space: | 3/4mil |
| Solder mask color: | Green | Legends' color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Milling |
| PCB Board Application: | digital products | ||
| Requesting Special requirement: | small line space and gap:3/4mil/HDI Buried vias and blind vias, two step stack up /impedance control/resin filled and plated over/0.25mm BGA/high TG | ||
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
