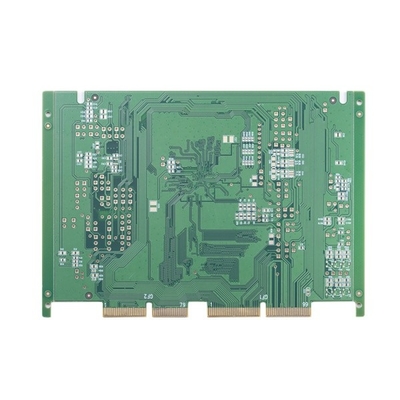

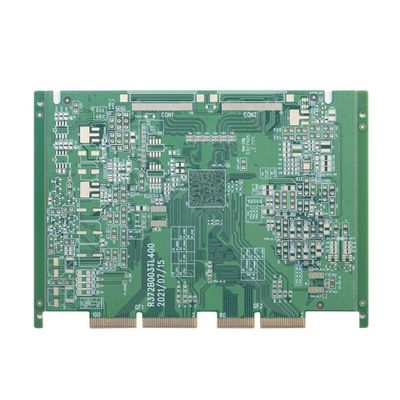

Small BGA Double Sided PCB Board Prototype ENEPIG PCB Green Solder Mask 7mil

Small BGA Double Sided PCB Board Prototype ENEPIG PCB Green Solder Mask 7mil

Double Sided PCB Double Sided ENEPIG PCB Small BGA And Impedance Control Green Solder Mask

Double Sided ENEPIG PCB

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.

HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.

Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace. HSX owns high-educated and experienced team and advanced production equipment.

The panel size of HSX factory's capability is max 740x500mm, but when the panel size is larger than 600mm, it will need to be review at first. And the minimum panel size that we can reach is 5*5mm.

The PCB thickness we can reach is from 0.2mm to 4.0mm, when the board thickness is lower than 0.2mm, or higher than 4mm, the board will need to be evaluated at first. (PS. When board thickness is equal to or less than 0.6mm, it will not apply for HASL surface finished)

The inner and outer layer's base copper thickness is smallest 0.3/0.5oz, and max 3oz.

0.15mm is factory's minumun hole size capability, when the hole size is smaller than 0.15mm, the board will need to be reviewed at first.

The colors of solder resist contain green,matt green,blue,matt blue,black,matt black,yellow,red,white, and as customer specify.

The colors of leged contain white, black and as customer specify.

FAQ:
Q1: How can I get a quotation?
A: Please send us gerber file with format Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB and provide the demand quantities. We will provide quotation accordingly.

Q2: Can you manufacture the PCBs from a picture file?
A: No. But if you can send us a sample PCB, we could clone its design and work it out.

Q3: Do you have PCB in stock.
A: Most of the PCB boards are customized, and they have different designs, we produce them according to the gerber files provided by customers.

Q4: What FR4 materials do you usually use?

A: Kingboard, ITEQ, Shengyi...

Q5:What kind of shipment way do you usually use?
A: For small volume order, we always suggest to ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
And for big volume order, to save freight cost, we will suggest to arrange the shipment by air or by sea, Of course, if you have your own forwarder and can provide us the information, we can contact them to arrange the shipment.
