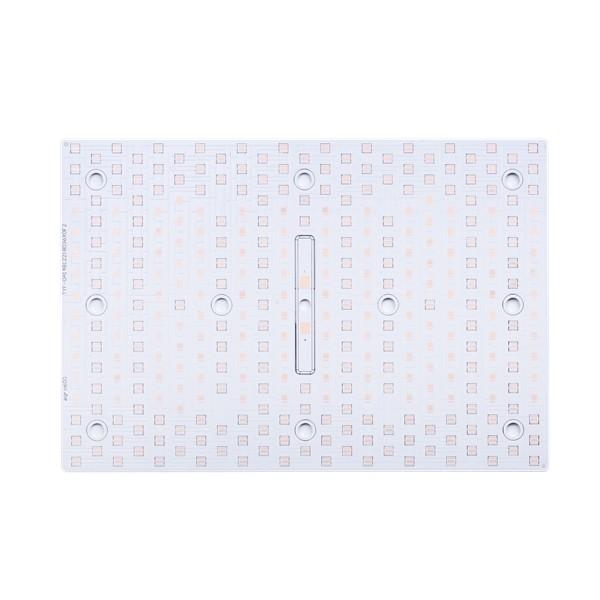

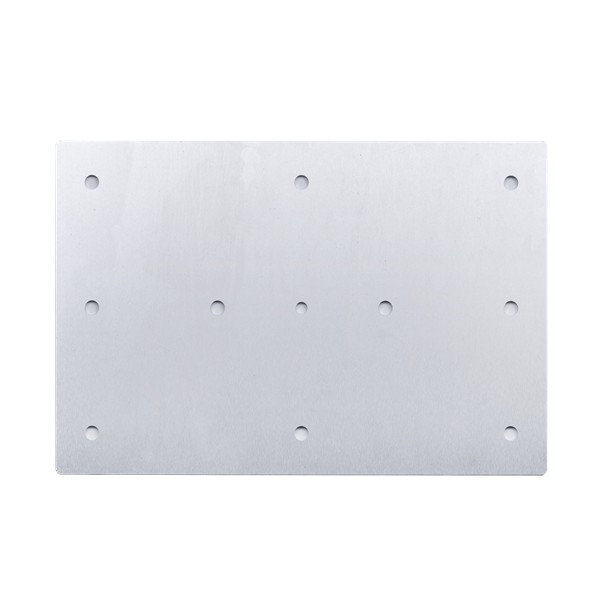

1OZ 1.0mm Aluminum PCB Board OSP Finished Aluminium Substrate Pcb
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 1L Aluminum Core Board, Aluminium Substrate Pcb | Marterial | Al |
|---|---|---|---|
| Surface Finished | OSP | Board Thickness | 1.0mm |
| Copper Thickness | 1/0 OZ | Break Down Voltage | 3KV |
| Solder Mask | White | Legend | Black |
| Finished Board Profile | Milling And V-Cut | Applicationcommunications Products | LED Light Industry |
| High Light | 1.0mm Aluminum PCB Board,1OZ Aluminum PCB Board,1OZ 1.0mm Aluminium Substrate Pcb |
||
Product Description
1OZ 1.0mm Aluminum PCB Board OSP Finished Aluminium Substrate Pcb
Aluminum PCB Board Aluminum PCB LED Aluminium Substrate PCB Aluminium PCB Led Aluminium Core PCB
1L Aluminum Core board
HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
Among all metal core PCBs, Aluminum PCB is the most common type. The base material consists of aluminum core and standard FR4 material. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.
Advantages of Aluminum PCB:
1. Environmentally friendly. Aluminum is non-toxic and recyclable.
2. Heat dissipation. Aluminum can transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3. Higher durability: Aluminum provides strength and durability to a product, and it can reduce accidental breakage during manufacturing, handling, and everyday use.
4. Lightweight: Aluminum is a lightweight metal.
| Laminate type/brand: | Al | Circuit board layer: | 1 layer |
| PCB Board thick: | 1.0 MM | Different Copper thickness: | 1/0 OZ |
| Thermal Conductivity | 2 W/ m·K | Finished Board profile: | Milling and V-CUT |
| Solder resist details: | White | Break down voltage | 3KV |
| Legend details: | Black | surface details: | OSP |
| Circuit Board usage: | LED light industry | ||
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.
Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.
Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
