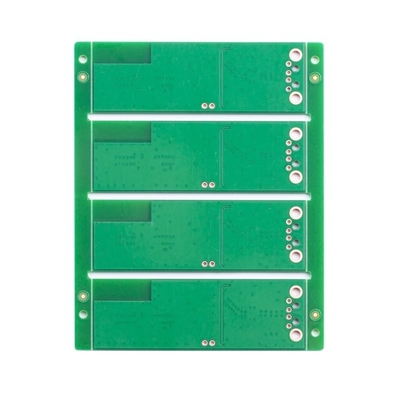

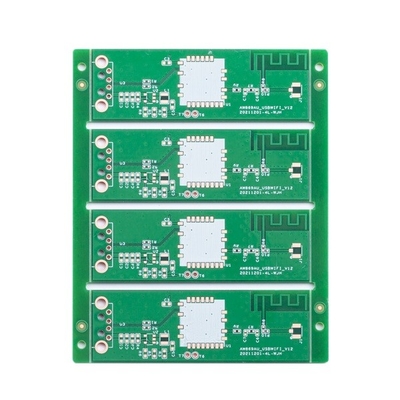

Impedance Control FR4 Multilayer Metal Core Pcb 4 Layer FR4 TG170 6mil
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 4 Layer Multilayer Metal Core Pcb | Marterial | FR4 TG170 |
|---|---|---|---|
| Surface Finished | OSP | Board Thickness | 0.15mm |
| Copper Thickness | 1/1/1/1OZ | Min. Line Distance/space | 4/6mil |
| Solder Mask | Green, KSM | Smallest Mechanical Drilling Hole | 0.20mm |
| Special Requirement | Impedance Control | Applicationcommunications Products | Power Supplies |
| High Light | 0.15mm Multilayer Metal Core Pcb,6mil Multilayer Metal Core Pcb,0.15mm 4 layer circuit board |
||
Product Description
Impedance Control FR4 Multilayer Metal Core Pcb 4 Layer FR4 TG170 6mil
Ultra Thin PCB Impedance Control FR4 Material Thin PCB Board Thin Board Multilayer Printed Circuit Board
4 layer Utra Thin Printed Circuit Board
Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.
HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
| PCB Layer | 4L | PCB material | FR4 TG170 |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 0.15MM |
| Min. hole size | 0.20mm | Min.PCB track/gap: | 4/6mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | OSP | PCB outline | Routing/V-CUT |
| Application | power supplies | ||
| Special requirement: | impedance control | ||
