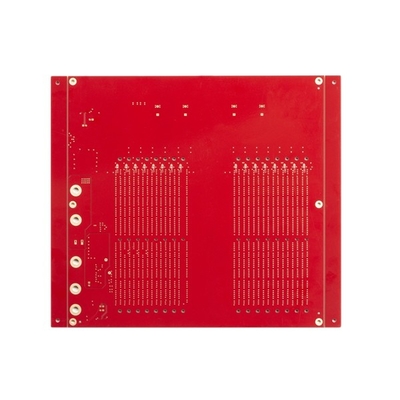

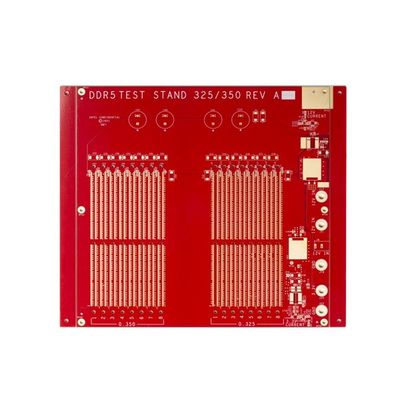

Red Solder Mask Quick Turn PCB Boards Rapid Prototype 2.4mm 4 Layer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | 4 Layer Quick Turn Red And Thick Printed Circuit Board | Marterial | FR4 TG170 |
|---|---|---|---|
| Board Thickness | 2.4mm | Copper Thickness | 1/1/1/1OZ |
| Smallest Mechanical Drilling Hole | 0.4mm | Min. Line Distance/space | 4/4mil |
| Surface Finished | Immersion Gold | Solder Mask | Red |
| Special Requirement | Impedance Control/high TG | Applicationcommunications Products | Digital |
| High Light | 2.4mm Quick Turn PCB Boards,1OZ Quick Turn PCB Boards,2.4mm quick turn pcb |
||
Product Description
Red Solder Mask Quick Turn PCB Boards Rapid Prototype 2.4mm 4 Layer
Quick Turn PCB Boards Red Solder Mask Thick Printed Circuit Board Rapid Prototype Demand Urgent Demand
4 Layer Quick Turn Red and Thick Printed Circuit Board
Max layers is 32layer (≥20 layer needs to review)
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review the board
Min finish panel size is 5 * 5mm
PCB material includes PI +FR4,FR4, Rogers, etch
PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)
Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Bow and twist tolerance: 0.075%
Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )
HDI Min drill hole capability: 0.08-0.10MM
PCB track/gap capability: 3mil(0.075mm)
PCB outline method: Routing/V-CUT/Punching
Solder mask thickness capability: standard 15-20um; Advanced: 35um
Min solder mask bridge width capability: green 4mil,other colour 4.8mil
Solder mask filling holes capability: 0.1-0.5mm
The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc
PCB silkscreen includes white, Black and as your request
Peelable mask thickness capability: 500-1000um
Oxidation film of OSP capability: 0.2-0.5um
| Circuit board Layer count: | 4L | Circuit board laminate: | FR4 TG170 |
| Layer Copper thick: | 1/1/1/1OZ | Board thickness: | 2.4MM |
| Smallest hole size: | 0.40mm | Smallest PCB track/gap: | 4/4mil |
| Solder mask color: | Red | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing/V-CUT |
| PCB Board Application: | digital products | ||
| Requesting Special requirement: | impedance control/high TG | ||
