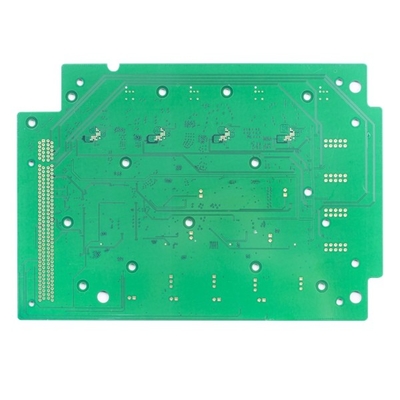

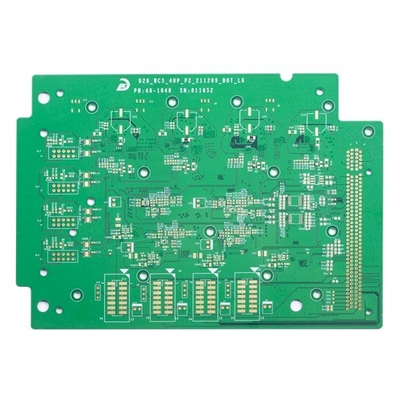

1.6mm FR4 ENIG 6 Layer PCB Circuit Board Green Solder Mask Immersion Gold

1.6mm FR4 ENIG 6 Layer PCB Circuit Board Green Solder Mask Immersion Gold

Quick Turn PCB Boards Press-Fit Hole PCB Green Color Solder Mask ENIG PCB 6 Layer PCB Manufacturing Urgent Order

6L Press-fit Hole quick Turn PCB

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. Huashengxin products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. We provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. And our products are widely applied to from communication industry, power supplies devices, computer networks to aerospace industry.

Max layers is 32layer (≥20 layer needs to review)

The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review the board

Min finish panel size is 5 * 5mm
PCB material includes PI +FR4,FR4, Rogers, etch
PCB thickness capability is 0.2~4.0mm(needs to review when <0.2 mm, or >4 mm ) (and can not do HASL surface with board thickness </=0.6mm)

Copper thickness of inner and outer base copper capability: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Bow and twist tolerance: 0.075%

Min. hole size: 0.15mm(need to review the board if smaller than 0.15 mm )

HDI Min drill hole capability: 0.08-0.10MM
PCB track/gap capability: 3mil(0.075mm)
PCB outline method: Routing/V-CUT/Punching

Solder mask thickness capability: standard 15-20um; Advanced: 35um

Min solder mask bridge width capability: green 4mil,other colour 4.8mil

Solder mask filling holes capability: 0.1-0.5mm

The color of solder mask covers green, matt green, blue, matt blue, black, matt black, yellow, red, white, etc
PCB silkscreen includes white, Black and as your request

Peelable mask thickness capability: 500-1000um
Oxidation film of OSP capability: 0.2-0.5um

FAQ:
Q1: How can I get a quotation?
A: Please send us gerber file with format Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB and provide the demand quantities. We will provide quotation accordingly.

Q2: Can you manufacture the PCBs from a picture file?
A: No. But if you can send us a sample PCB, we could clone its design and work it out.

Q3: Do you have PCB in stock.
A: Most of the PCB boards are customized, and they have different designs, we produce them according to the gerber files provided by customers.

Q4: What FR4 materials do you usually use?

A: Kingboard, ITEQ, Shengyi...

Q5:What kind of shipment way do you usually use?
A: For small volume order, we always suggest to ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
And for big volume order, to save freight cost, we will suggest to arrange the shipment by air or by sea, Of course, if you have your own forwarder and can provide us the information, we can contact them to arrange the shipment.
