2.0mm Double Sided Copper PCB Board Green Solder Mask Immersion Gold

Place of Origin China
Brand Name Huashengxin
Certification UL , ISO9001
Model Number ED9A8195
Minimum Order Quantity 1pcs
Packaging Details vacuum
Delivery Time fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Name Double Sided Copper Clab Green Printed Circuit Board Marterial Copper FR4
Surface Finished Immersion Gold Board Thickness 2.0mm
Copper Thickness 1/1 OZ Solder Mask Green
Profile Routing Applicationcommunications Products Power Supply Devices
High Light

2.0mm Copper PCB Board

,

2.0mm copper circuit board

,

ODM Copper PCB Board

Leave a Message
Product Description

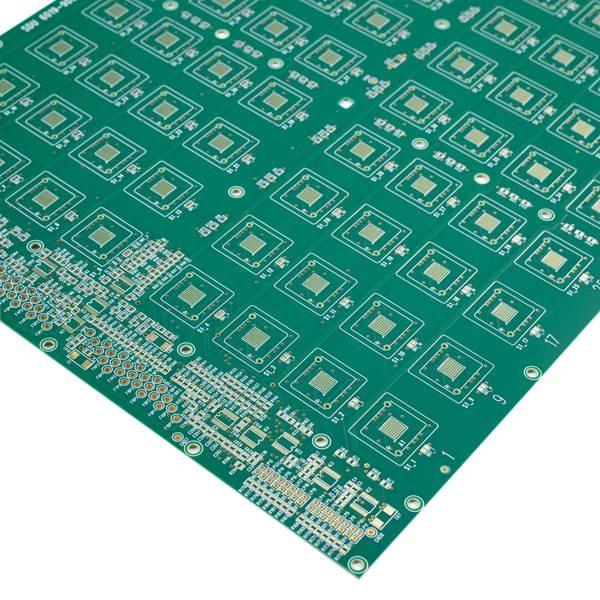

2.0mm Double Sided Copper PCB Board Green Solder Mask Immersion Gold



Copper PCB Board Double Sided Copper Clab Green Printed Circuit Board Double Layer Board Green Solder Mask​



Double Sided Copper Clab Green Printed Circuit Board



A copper clad PCB is a type of PCB that features a copper clad laminate. This laminate is a PCB substrate playing a significant role in PCB manufacturing industry. A copper clad board is common in the PCB industry. This is because it offers great features. It has multiple layers that include a copper substrate or base, an insulating layer, and lastly, the copper circuit layer.



Copper clad laminates for PCBs allows designers take advantage of constant distance between the copper foils acting as power and ground planes. When distributing power to a system, this arrangement reduces the modal resonances by lowering the inductance between the two planes. This not only reduces the impedance of the system, but also decreases the amount of filter capacitors necessary.



Items Capability
Board Classification Copper Base,Ceramics Base,Copper-Clad
Material Copper, FR4
Surface Treatment HASL/ENIG/OSP/Silver
Layer Count Single-sided printed board/Double-sided printed board
Max.Board Size 1200mm*480mm
Min.Board Size 5mm*5mm
Trace width/Space 0.1mm/0.1mm
Board Thickness 0.5mm-5.0mm
Copper Thickness 35um/70um/105um/140um/175um/210um
