Lightweight Single Sided Circuit Board 0.8mm Aluminum Backed PCB

Lightweight Single Sided Circuit Board 0.8mm Aluminum Backed PCB

Single Sided PCB Aluminum PCB Board PCB Aluminum Board Metal Core PCB Round Circuit Board Single Sided PCB Board

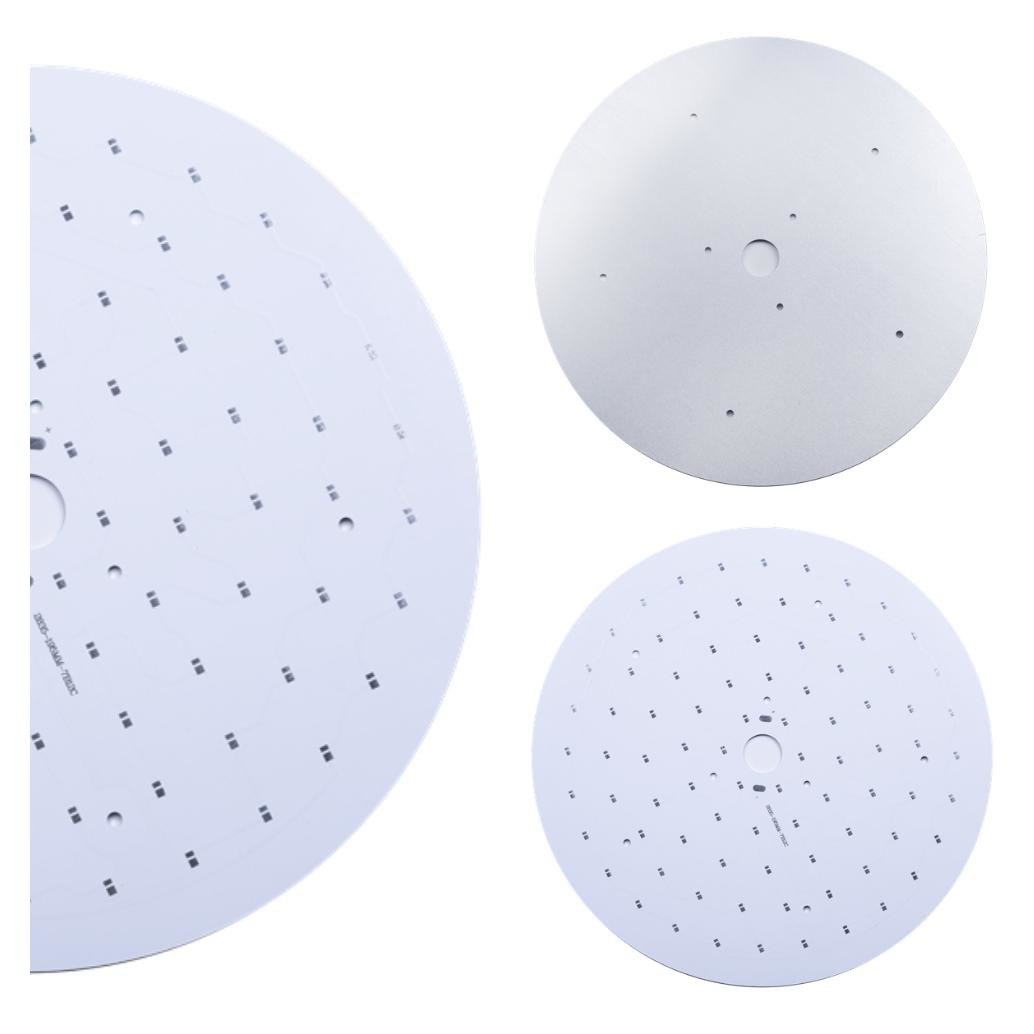

Single Sided Aluminum LED PCB

Advantages of Aluminum PCB:
1. Environmentally friendly. Aluminum is non-toxic and recyclable.
2. Heat dissipation. Aluminum can transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.
3. Higher durability: Aluminum provides strength and durability to a product, and it can reduce accidental breakage during manufacturing, handling, and everyday use.
4. Lightweight: Aluminum is a lightweight metal.

Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.

FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.

Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.

Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.

Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
