Aluminum 1.6mm Single Sided PCB Board Lead Free For Led Light

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPCB Name | One Sided Aluminumr Clad Printed Circuit Board | Marterial | Al |
---|---|---|---|
Surface Finished | OSP | Board Thickness | 1.6mm |
Copper Thickness | 1/0 OZ | Break Down Voltage | 4KV |
Solder Mask | White | Legend | Black |
Finished Board Profile | Routing | Applicationcommunications Products | LED Light Industry |
High Light | 1.6mm 1oz Single Sided PCB Board,odm Single Sided PCB Board,1.6mm one sided pcb |

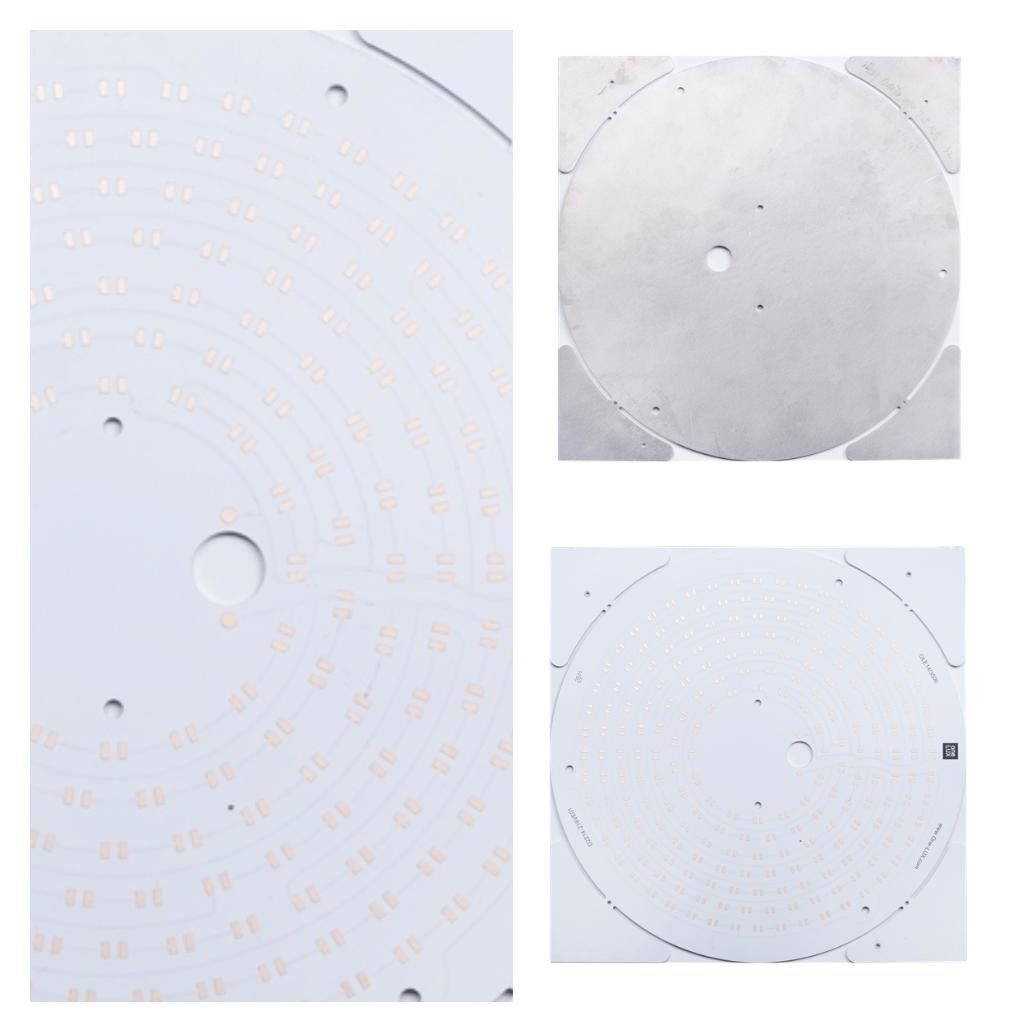

Aluminum 1.6mm Single Sided PCB Board Lead Free For Led Light
Single Sided PCB Aluminum PCB Board Aluminium PCB For Led PCB Aluminium Led Aluminum Printed Circuit Boards
One sided Aluminumr Clad Printed Circuit Board
Aluminum PCB, or Aluminium PCB, also called Alu PCB. Among all metal core PCBs, Aluminum PCB is the most common type. The base material consists of aluminum core and standard FR4 material. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.
Aluminum printed circuit boards are wisely used in power supplier products, communication electronic equipment,automation equipment, automobile device, computer, lighting products and and so.
1)Telecommunications:high-frequency amplifiers and filtering appliances...
2) Power Supply: switching regulators and DC/AC converters...
3) Automotive:electronic regulators, lighting and power controllers...
4) Computers: CPU boards, floppy drives and power devices...
5) Power Modules: converters, solid-state relays, power rectifiers, and bridges...
6) Audio Devices: input and output amplifiers and power amplifiers...
Office Automation: electric motors and drives...
7) Consumer: Street lighting, Traffic control lighting, Interior building lights...
8)Landscape lighting, and Camping gear...
9)Medical: Operating room lighting, Surgical lighting tools, High power scanning technology, and Power converters...
Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
The Minimum panel size is 5 * 5mm.
Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
Bow and twist tolerance is 0.075%.
The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
The color of silkscreen color: include white, black and so on.
Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.
Laminate type/brand: | Al | Circuit board layer: | 1 layer |
PCB Board thick: | 1.6 MM | Different Copper thickness: | 1/0 OZ |
Thermal Conductivity | 2 W/ m·K | Finished Board profile: | Milling |
Solder resist details: | White | Break down voltage | 4KV |
Legend details: | Black | surface details: | OSP |
Circuit Board usage: | LED light industry |
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for small value less than 500usd)
