White Solder Mask Ceramic PCB Board LED Field Highly Versatile TG FR4 105um
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | White Solder Mask Ceramic Printed Circuit Board | Marterial | FR-4;High TG FR-4; |
|---|---|---|---|
| Surface Finished | Immersion Gold, | Board Thickness | 0.4mm-4.0mm |
| Copper Thickness | 18um-105um | Solder Mask | Green;blue;black;red... |
| Highlight | ODM OEM Ceramic PCB Board,105um Ceramic PCB Board,105um white circuit board |
||
Product Description
White Solder Mask Ceramic PCB Board LED Field Highly Versatile TG FR4 105um

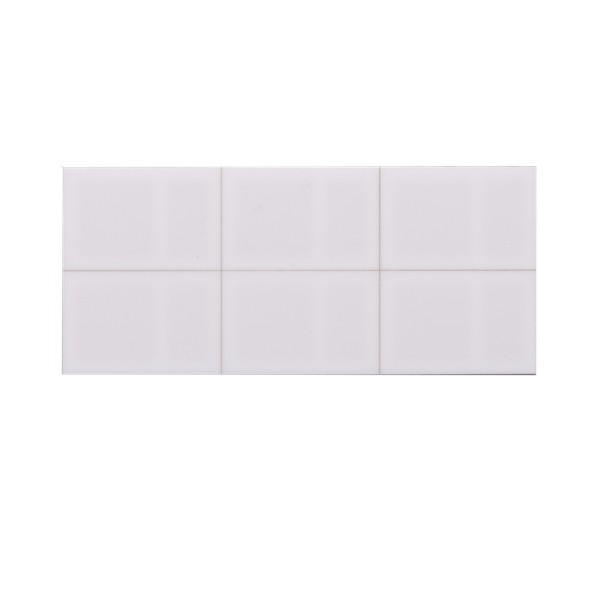

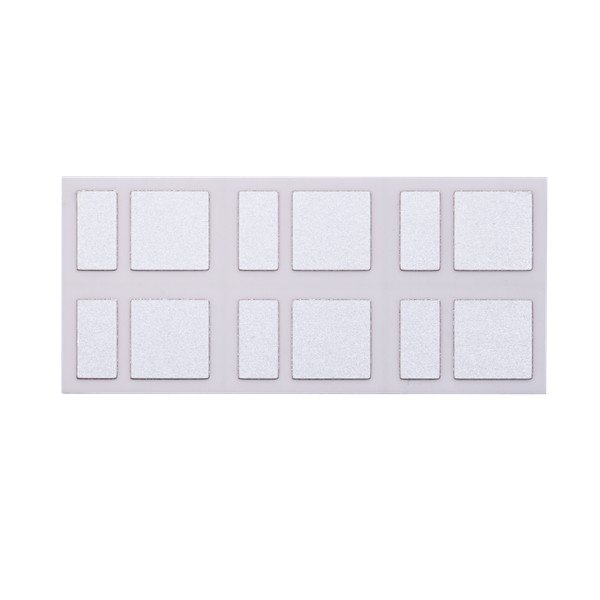

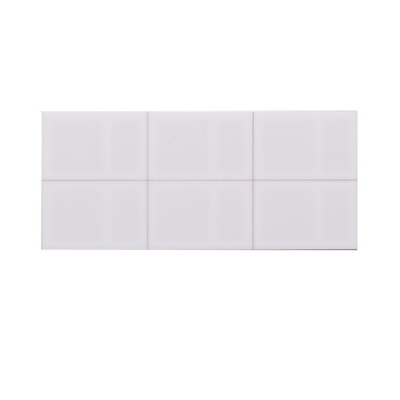

Ceramic PCB Board White Solder Mask Ceramic Printed Circuit Board LED Field Highly Versatile
White solder MAS Ceramic Printed Circuit Board
Ceramic PCB is a kind of heat conducting ceramic powder and organic binder, and the heat conduction organic ceramic PCB is prepared at a thermal conductivity of 9-20W/m. In other words, ceramic PCB is a printed circuit board with ceramic base material, which is highly thermally conductive materials such as alumina, aluminum nitride, as well as beryllium oxide, which can make a quick effect on transferring heat away from hot spots and dissipating it over the whole surface. What’s more, ceramic PCB is fabricated with LAM technology, which is a laser rapid activation metallization technology. So ceramic PCB is highly versatile that can take place of the entire traditional printed circuit board with a less complicated construction with enhanced performance.
Ceramic printed circuit boards have a wide range of applications and can be used in the LED field, solar panel components, high-power power semiconductor modules, semiconductor refrigerators, electronic heaters, power control circuits, power hybrid circuits, smart power components, high-frequency switching power supplies , solid state relays, automotive electronics, communications, aerospace and military electronic components.
| tems | Normal standard |
| Material | FR-4;High TG FR-4; Ceramic base material |
| Layer NO. | 1-20 |
| Board Size | 50mm*50mm-560mm*640mm |
| Board Thickness | 0.4mm-4.0mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.15mm |
| Copper Thickness | 18um-105um |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.1mm |
| Min Space Width | 0.1mm |
| Solder Mask Color | green;blue;black;red... |
| Surfae | Immersion gold, LF-HASL, OSP... |
| Outline profile | CNC; V-CUT; Punching |
| Impedance Control | ±10% |
| certificate | ISO9001 |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.
Q2:How about your PCB factory production capacity?
A: Our monthly production capacity is 50,000 square meter/month and 5000types/month.
Q3:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q4:How will you usually ship the PCB?
A: Usually for small packages, we will ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
Q5:What is your standard lead time for production?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
