Circle Ceramic Circuit Board LF HASL Metal Film FR4 18um Thickness

Circle Ceramic Circuit Board LF HASL Metal Film FR4 18um Thickness

Ceramic PCB Board White Circle Ceramic Core Circuit Board Stronger And Lower Resistance Great Solderability Metal Film

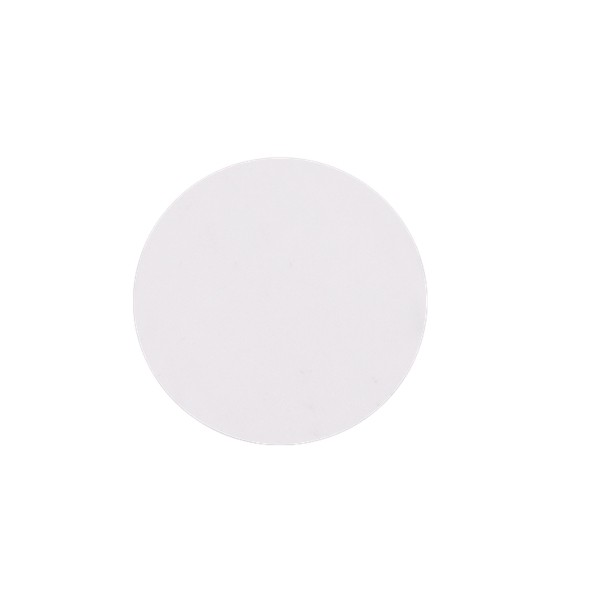

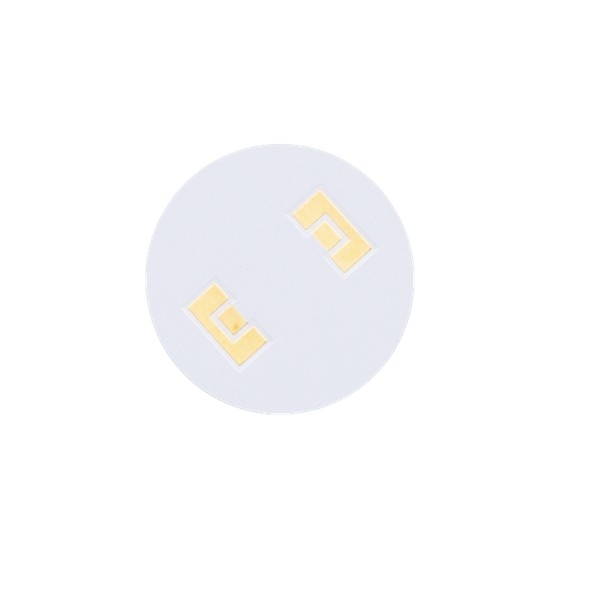

White Circle Ceramic Core Circuit Board

The ceramic PCB made on ceramic is considered a type of metal core PCB. While other circuit boards such as FR4 or Aluminum can be used for electrical equipment, Ceramic circuit boards provide extra safety. It is made of electronic ceramics that can be changed into many different shapes and sizes. For having high-temperature resistance and high electrical insulation performance, it is used vastly in various fields that need better circuit boards.

Advantages of ceramic PCB boards

1) Higher thermal conductivity

2) More matching thermal expansion coefficient

3) Stronger and lower resistance metal film


4) The solderability of the substrate is good, and the use temperature is high

5) Good insulation

6) Low high frequency loss

7) High-density assembly is possible

8) High reliability in aerospace and has a long service life

FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn prototype PCB manufacturing & big volume PCB production lines.

Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.

Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.

Q5: Do you provide PCB Assembly services, too?
For heavy goods more than 300kg, we may ship your PCB boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.
