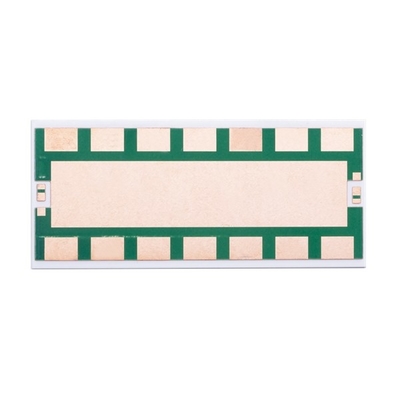

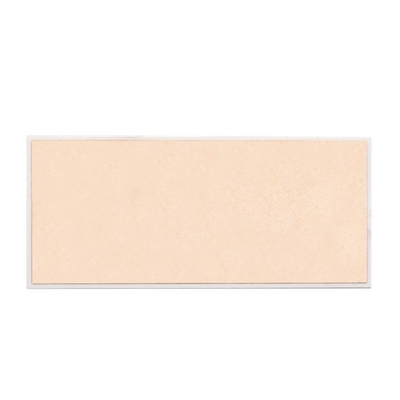

Semiconductor Refrigerators Ceramic PCB Board OSP 0.4mm Green Color
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Name | Semiconductor Refrigerators Green Ceramic Printed Circuit Board | Marterial | FR-4;High TG FR-4; Ceramic Base Material |
|---|---|---|---|
| Surface Finished | LF-HASL, OSP | Board Thickness | 0.4mm-4.0mm |
| Copper Thickness | 18um-105um | Solder Mask | Green |
| High Light | ODM OSP Ceramic PCB Board,0.4mm Ceramic PCB Board,ODM OSP semiconductor pcb |
||
Product Description
Semiconductor Refrigerators Ceramic PCB Board OSP 0.4mm Green Color
Ceramic PCB Board Semiconductor Refrigerators Green Ceramic Printed Circuit Board Green Solder Mask Ceramic Circuits
Semiconductor refrigerators Green Ceramic Printed Circuit Board
Ceramic PCB is a kind of heat conducting ceramic powder and organic binder, and the heat conduction organic ceramic PCB is prepared at a thermal conductivity of 9-20W/m. In other words, ceramic PCB is a printed circuit board with ceramic base material, which is highly thermally conductive materials such as alumina, aluminum nitride, as well as beryllium oxide, which can make a quick effect on transferring heat away from hot spots and dissipating it over the whole surface. What’s more, ceramic PCB is fabricated with LAM technology, which is a laser rapid activation metallization technology. So ceramic PCB is highly versatile that can take place of the entire traditional printed circuit board with a less complicated construction with enhanced performance.
Ceramic printed circuit boards have a wide range of applications and can be used in the LED field, solar panel components, high-power power semiconductor modules, semiconductor refrigerators, electronic heaters, power control circuits, power hybrid circuits, smart power components, high-frequency switching power supplies , solid state relays, automotive electronics, communications, aerospace and military electronic components.
| tems | Normal standard |
| Material | FR-4;High TG FR-4; Ceramic base material |
| Layer NO. | 1-20 |
| Board Size | 50mm*50mm-560mm*640mm |
| Board Thickness | 0.4mm-4.0mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.15mm |
| Copper Thickness | 18um-105um |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.1mm |
| Min Space Width | 0.1mm |
| Solder Mask Color | green;blue;black;red... |
| Surfae | Immersion gold, LF-HASL, OSP... |
| Outline profile | CNC; V-CUT; Punching |
| Impedance Control | ±10% |
| certificate | ISO9001 |
FAQ:
Q1: How can I get a quotation?
A: Please send us gerber file with format Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB and provide the demand quantities. We will provide quotation accordingly.
Q2: Can you manufacture the PCBs from a picture file?
A: No. But if you can send us a sample PCB, we could clone its design and work it out.
Q3: Do you have PCB in stock.
A: Most of the PCB boards are customized, and they have different designs, we produce them according to the gerber files provided by customers.
Q4: What FR4 materials do you usually use?
A: Kingboard, ITEQ, Shengyi...
Q5:What kind of shipment way do you usually use?
A: For small volume order, we always suggest to ship the boards by DHL,UPS,FedEx door to door service, we could use your shipping account to do collection or use our account to ship in DDU (import duty unpaid) delivery term.
And for big volume order, to save freight cost, we will suggest to arrange the shipment by air or by sea, Of course, if you have your own forwarder and can provide us the information, we can contact them to arrange the shipment.
