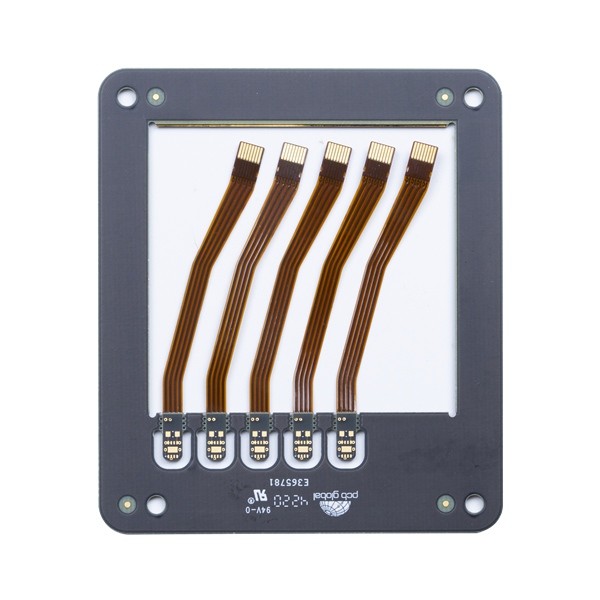

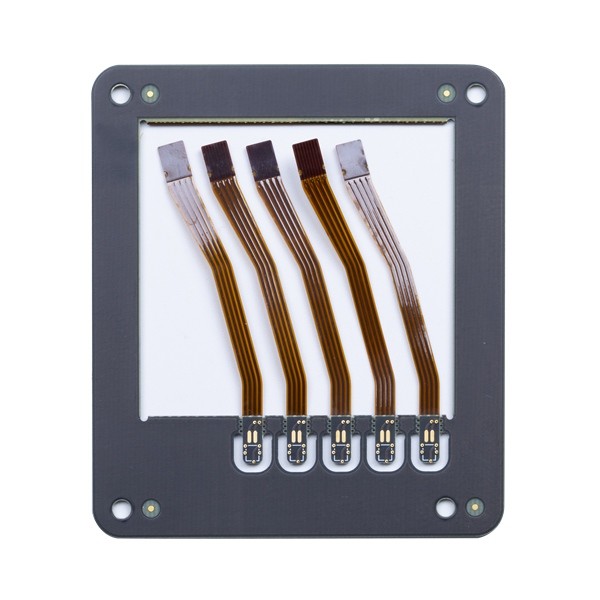

3mil 4L Rigid Flex PCB Black Solder Mask Diy Flexible Circuit Board
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 4L Flexible Rigid Printed Circuit Board | Material | FR-4 +PI |
|---|---|---|---|
| Board Layer | 4L | Surface Finished | Immersion Gold |
| Board Thickness | 0.8mm | Copper Thickness | 1/1/1/1oz Finished |
| Min. Hole Size | 0.15mm | Min.PCB Track/gap | 3mil/3mil |
| Solder Mask | Black, Both Sides | Special Requirement | Via Size 0.15mm |
| Highlight | 4L Rigid Flex PCB,3mil Rigid Flex PCB,3mil Flexible Circuit Board |
||
Product Description
3mil 4L Rigid Flex PCB Black Solder Mask Diy Flexible Circuit Board
Rigid Flex PCB Rigid Flexible PCB Rigid Flex Board Rigid Flex PCB Design Rigid Flex PCB Manufacturers
4L Flexible Rigid Printed Circuit Board
Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.
Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.
The advantages of rigid flex board includes:
1) ruducing products' weight
2) temperature resistance is excellent
3) being more flexible
4) with good reliability
| Circuit board Layer count: | 4L | Circuit board laminate: | FR-4+PI |
| Layer Copper thick: | 1/1/1/1OZ | Board thickness: | 0.80MM |
| Smallest hole size: | 0.15mm | Smallest PCB track/gap: | 3/3mil |
| Solder mask color: | YEYO Black | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing |
| PCB Board Application: | science and education | ||
| Requesting Special requirement: | small line space and gap:3/3mil /min. via hole size 0.15mm/FR-4+PI | ||
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q3:Will our PCB files be checked.
A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.
Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.
Q5:Which payment method do you accept?
A: Wire Transfer(T/T), Letter of Credit(L/C), or Paypal( Paypal is only for small value less than 500usd)
