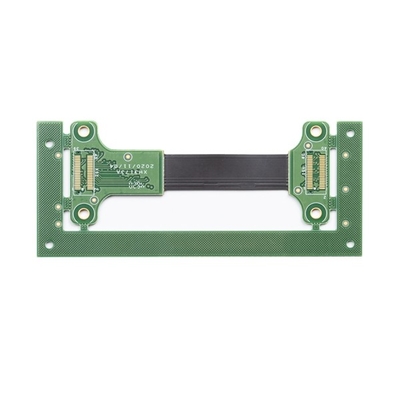

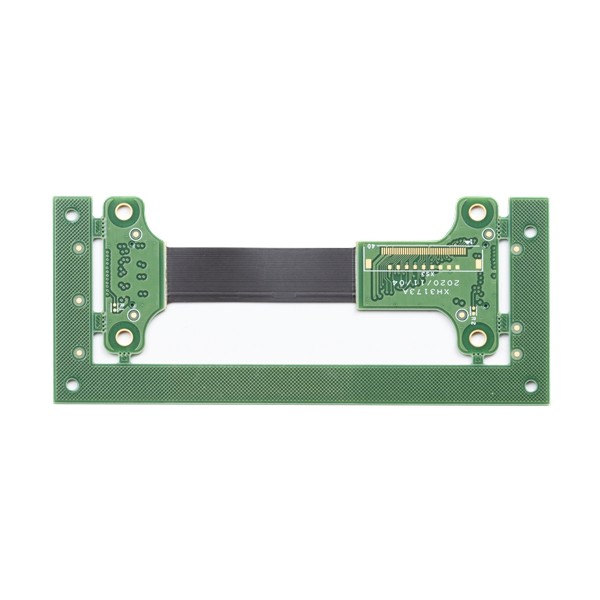

Rigid Flex Custom Printed Circuit Boards 6 Layer Immersion Gold FR4 TG170
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 6L Custom Printed Circuit Boards | Material | Shengyi FR4 TG170 S1000-2+PI |
|---|---|---|---|
| Board Layer | 6L | Surface Finished | Immersion Gold |
| Board Thickness | 1.6mm | Copper Thickness | 1/1/1/1/1/1oz Finished |
| Min. Hole Size | 0.15mm | Min.PCB Track/gap | 3mil/3mil |
| Solder Mask | KSM Green, Both Sides | Special Requirement | Resin Filled And Plated Over/FR-4+PI |
| High Light | ODM Custom Printed Circuit Boards,TG170 Custom Printed Circuit Boards,TG170 flex circuit board |
||
Product Description
Rigid Flex Custom Printed Circuit Boards 6 Layer Immersion Gold FR4 TG170
Rigid Flex PCB Rigid Flex Circuits Multilayer Rigid Flex PCB Prototype PCB Fabrication Flex Rigid Board
6L Rigid Flex PCB
Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.
Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.
The advantages of rigid flex board includes:
1) ruducing products' weight
2) temperature resistance is excellent
3) being more flexible
4) with good reliability
| Laminate type/brand: | Shengyi FR4 TG170 S1000-2+PI | Circuit board layer: | 6 layer |
| PCB Board thick: | 1.6 MM | Different Copper thickness: | 1/1/1/1/1/1OZ |
| Smallest Mechanical drilling hole: | 0.15 mm | Finished Board profile: | Milling |
| Solder resist details: | KSM Green | Smallest line distance/space: | 3/3mil |
| Legend details: | White | surface details: | Immersion Gold |
| Special request/remark: | small line space and gap:3/3mil/HDI Buried vias and blind vias /min. via hole size 0.15mm/impedance control/resin filled and plated over/FR-4+PI | ||
| Circuit Board usage: | digital products | ||
