Immersion Gold 4 Layer Flex Pcb Rigid Printed Circuit Board 2.0mm 3mil

Place of Origin China
Brand Name Huashengxin
Certification UL , ISO9001
Model Number 211912
Minimum Order Quantity 1pcs
Packaging Details vacuum
Delivery Time fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PCB Layer 4L Flexible Rigid PCB Material FR-4+PI
Board Layer 4L Surface Finished Immersion Gold
Board Thickness 2.0mm Copper Thickness 1/1/1/1oz Finished
Min. Hole Size 0.15mm Min.PCB Track/gap 3mil/3mil
Solder Mask TAIYO Green Special Requirement Impedance Control/FR-4+PI
High Light

2.0mm 4 Layer Flex Pcb

,

3mil 4 Layer Flex Pcb

,

3mil Rigid Printed Circuit Board

Leave a Message
Product Description

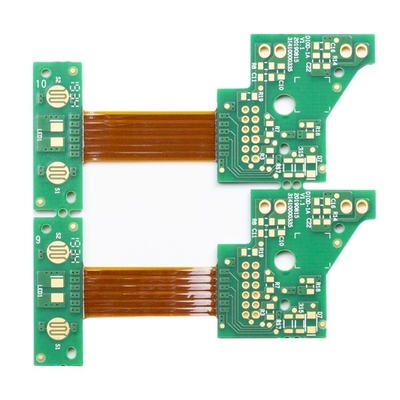

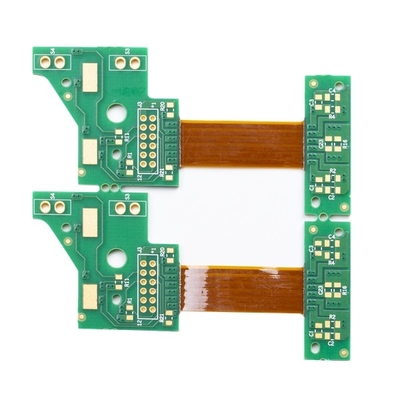

Immersion Gold 4 Layer Flex Pcb Rigid Printed Circuit Board 2.0mm 3mil



Rigid Flex PCB Flexible Rigid Printed Circuit Board Rigid Flexible PCB Manufacturers Flexible Rigid PCB



4L Flexible Rigid PCB



Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.



Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.



The advantages of rigid flex board includes:

1) ruducing products' weight

2) temperature resistance is excellent

3) being more flexible

4) with good reliability



Circuit board Layer count: 4L Circuit board laminate: FR-4+PI
Layer Copper thick: 1/1/1/1OZ Board thickness: 2.0MM
Smallest hole size: 0.15mm Smallest PCB track/gap: 3/3mil
Solder mask color: TAIYO Green Silk screen color: White
PCB surface finished: Immersion Gold Board profile: Routing
PCB Board Application: science and education
Requesting Special requirement: small line space and gap:3/3mil /min. via hole size 0.15mm/impedance control/FR-4+PI



Immersion Gold 4 Layer Flex Pcb Rigid Printed Circuit Board 2.0mm 3mil 0Immersion Gold 4 Layer Flex Pcb Rigid Printed Circuit Board 2.0mm 3mil 1

FAQ:
Q1:What services could you provide?
A: PCB Manufacture,PCB Assembly,Rapid Prototype order, and so on



Q2:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.



Q3:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days



Q4: Does our product will be tested before shipment.
A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.



Q5:How to get quick quotation?
A: Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
sample:
PCB Layer: 2L/4L/6L/8L/10L/12L
PCB material/Base material: FR4, TG170; FR, SHENGYI/FR4,IT180A; Rogers+FR4 TG170; FR4+PI
Copper thickness: 1/1oz finished; 2/2oz finished; 1/1/1/1oz finished; 2/2/2/2oz finished; 1oz inner base and 1oz outer finished;
PCB solder mask/ Solder mask Color: Green for both sides; Blue for both sides; Black for both sides; White for both sides
PCB silkscreen: Double side,White; N/A; Black for both sides
Quantity: 15pcs, 5 working day; 1000pcs, 14 working days;
