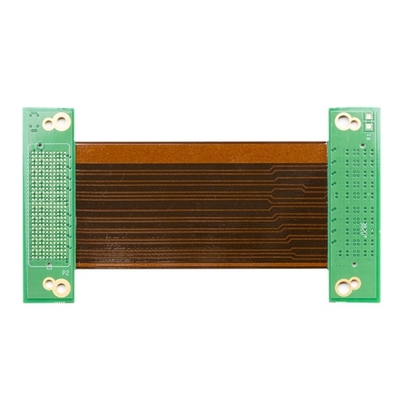

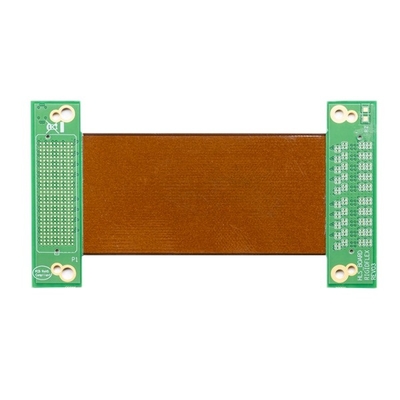

FR4 TG170 Rigid Flex PCB Fabrication Immersion Gold Green Color Solder Mask
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| PCB Layer | 4L Rigid Flexible PCB | Material | FR4 S1000-2M TG170+PI |
|---|---|---|---|
| Board Layer | 4L | Surface Finished | Immersion Gold |
| Board Thickness | 2.0mm | Copper Thickness | 1/1/1/1/1/1oz Finished |
| Min. Hole Size | 0.15mm | Min.PCB Track/gap | 3mil/3mil |
| Solder Mask | Green Color | Application | Science And Education |
| High Light | TG170 Rigid Flex PCB,FR4 TG170 Rigid Flex PCB,FR4 TG170 4 layer pcb |
||
Product Description
FR4 TG170 Rigid Flex PCB Fabrication Immersion Gold Green Color Solder Mask
Rigid Flex PCB Rigid Flex PCB Prototype Rigid Flexible PCB Prototype PCB Fabrication Rigid Flex Circuits
4L Rigid FlexIble PCB
Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.
Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.
The advantages of rigid flex board includes:
1) ruducing products' weight
2) temperature resistance is excellent
3) being more flexible
4) with good reliability
| PCB Layer | 4L | PCB material | FR4 S1000-2M TG170+PI |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 2.0MM |
| Min. hole size | 0.15mm | Min.PCB track/gap: | 3/3mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing |
| Application | science and education | ||
| Special requirement: | small line space and gap:3/3mil/min. via hole size 0.15mm/impedance control//0.25mm BGA/FR-4+PI | ||
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.
Q3:Are my PCB files safe when I submit them to you for manufacturing?
A: We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from your side, nor we'll share these files with any other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
