12L Chemical Nickel Gold Multilayer Printed Circuit Board Base Station PCB
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Nickel Gold Multilayer Printed Circuit Board,12L Multilayer Printed Circuit Board,Nickel Gold Multi Layer Board |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| Fr4 max. layers. count | 1~24 | 26~36 | |
|---|---|---|---|
| HDI max. layers. count | 4~20L (3+N+3) | 22~32 (3+N+3) | |
| D/S(NPTH) max. panel size | 21.5*24.5"(546*622mm) | 21.5*59"(546*1500mm) | |
| S/S(NPTH) max. panel size | 21.5*24.5"(546*622mm) | 21.5*49"(546*1245mm) | |
| multilayer max. panel size | 21.5*24.5"(546*622mm) | 21.5*49"(546*1245mm) | |
| min. piece size | 5*5mm | 2*2mm | |
| max. overall board thickness | 158mil (4mm) | 394mil (10mm) | |
| Min. Overall Board or Core Thickness | 8mil (0.200mm) | 3mil (0.075mm) | |
| ≤ 1.0mm PCB`s Boards Thickness Tolerance | ±3mil (0.075mm) | / | |
| ≤ 2.0 mm PCB`s Boards Thickness Tolerance | ±5mil (0.13mm) | / | |
| Max. Aspect Ratio | 15:01 | / | |
| FR-4 Min. DHS (Drill Hole Size) | 6mil (0.15mm) | / | |
| HDI Min. DHS (Drill Hole Size) | 0.08-0.10MM | / | |
| Min. Hole to Hole Distance | 10mil (0.25mm) | 6mil (0.150mm) | |
| PTH Hole Size Tolerance | ±3mil (0.076mm) | ±2mil (0.050mm) | |
| NPTH Hole Size Tolerance | ±2mil (0.050mm) | ±1.5mil (0.040mm) | |
| Hole Location Tolerance | ±3mil (0.076mm) | ±2mil (0.050mm) | |
| Min. Line Width/Space---Inner Layer---1/3 oz | 2.5/2.5mil (0.0635/0.0635mm) | 2/2mil (0.0508/0.0508mm) | |
| Min. Line Width/Space---Inner Layer---1oz | 4/4mil (0.100/0.100mm) | 3.0/3.0mil (0.089/0.089mm) | |
| Min. Line Width/Space---Outer Layer---Hoz+Plating | 4/4mil (0.100/0.100mm) | 3.5/3.5mil (0.089/0.089mm) | |
| Min. Line Width/Space---Outer Layer---1oz+Plating | 5/5mil (0.127/0.127mm) | 4/4mil (0.100/0.100mm) | |
| Min. Line Width/Space---Outer Layer---2oz+Plating | 6/6mil (0.150/0.150mm) | 5/5mil (0.127/0.127mm) |
Product Description

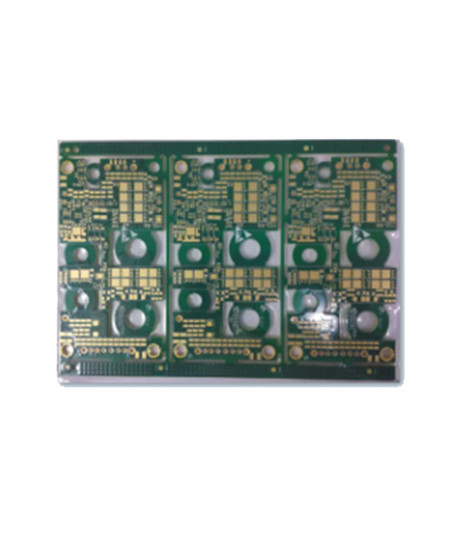

12L Chemical Nickel Gold Multilayer Printed Circuit Board Base Station PCB
12L, chemical nickel gold, 0.25 mil/ 0.25mil, base station PCB, ISO9001,IATF16949 Approved Shenzhen Factory
The product is applied to small base station power supply, the thickness of copper in the hole is 70um, the via hole is plugged with resin, the thickness of copper in the inner layer is 4oz, and the thickness of the outer layer is 3oz.
Multilayer Printed Circuit Board
Huashengxin Circuit Limited is a professional manufacturer for printed circuit boards and provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. The products include 1~32L FR-4 rigid printed circuit board, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.
HSX's products are widely used in many high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace, and so on.
Max layers: 32layer (if more than 20 layer, needs to review the capability)
Max finish panel size: 740* 500 MM(if larger than 600 MM, needs to review capability)
Min finish panel size: 5 * 5mm
Raw material: PI +FR4,FR4, Rogers, AI and so on
Printed circuit board's finished board thickness: 0.2~4.0mm( if less than 0.2 mm, or more than 4 mm needs to review) (if board thickness ≤ 0.6mm, can not apply for HASL surface)
Printed circuit board's copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz
Finished outer copper: 6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review the capability)
HDI Min drill hole: 0.08-0.10MM
Printed circuit board's track/gap: 3mil(0.075mm)
Printed circuit board's Profile: Routing, Punching, V-CUT
Printed circuit board's solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask plugged holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white, and so on
PCB silkscreen: White, Black and so on
Thickness of Peelable mask: 500-1000um
