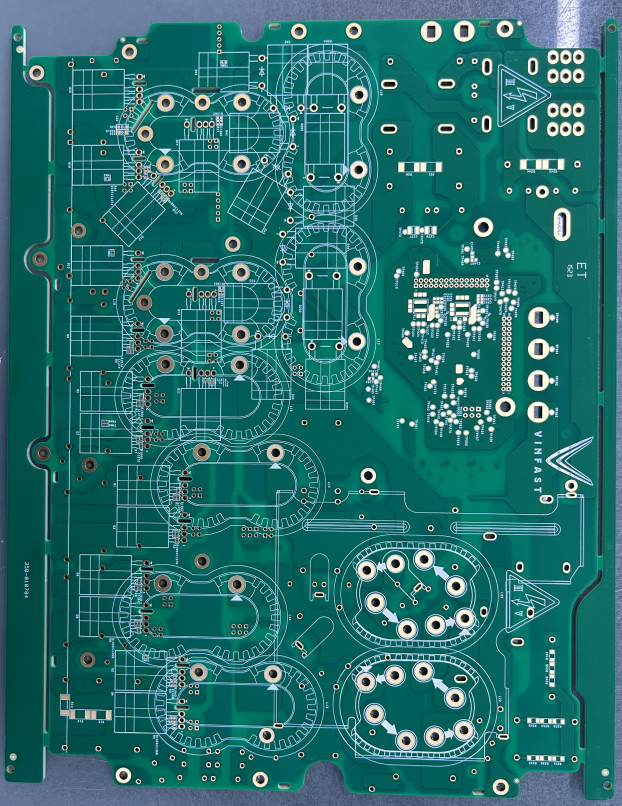

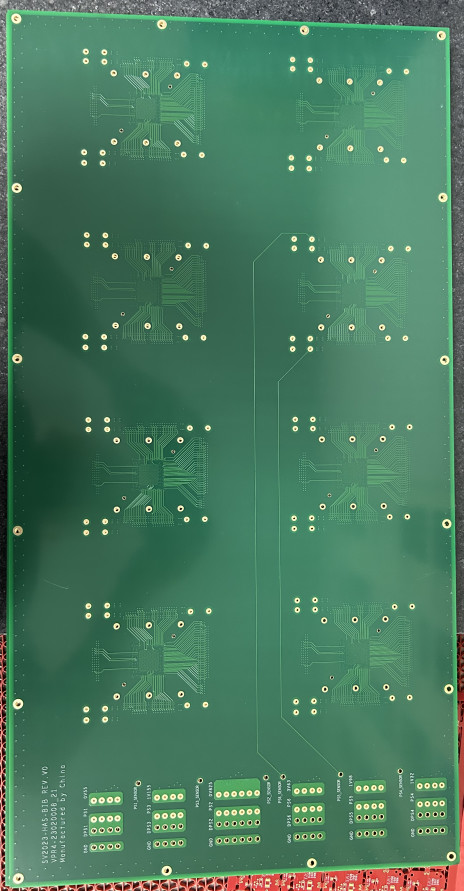

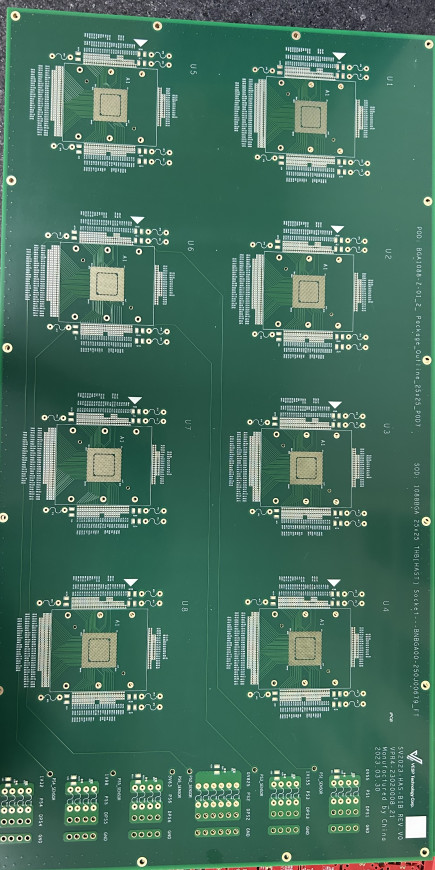

White Silkscreen 8 Layers FR4 Multi Layer PCB Board Green Solder Mask
| Place of Origin | Shenzhen China |
|---|---|
| Brand Name | HSX Circuit |
| Certification | IATF16949-2016 | ISO9001 2015 | ZPMV2.E509426 | ROHS |
| Model Number | HSX6659 |
| Minimum Order Quantity | 1pcs |
| Price | usd0.1 per piece |
| Packaging Details | Anti-static Bag |
| Delivery Time | 3-7days |
| Payment Terms | T/T, T/T, MoneyGram |
| Supply Ability | 100000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layers | 8L | Material | FR4 TG150 |
|---|---|---|---|
| Outer Finished Copper Thickness | 1oz | Inner Finished Copper Thickness | 1oz |
| Surface Treatment | ENIG | Application | Automactive |
| Solder Mask | Green | Silkscreen | White |
| Line Width/Space | 4mil/4mil | ||
| High Light | White Silkscreen Multi Layer PCB Board,FR4 Multi Layer PCB Board,Green Solder Mask Multilayer PCB Assembly |
||
You can tick the products you need and communicate with us in the message board.
| Capacity | Double Sided: 12000 sq.m / month | |
|---|---|---|
| Capacity | Multilayers: 8000sq.m / month | |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) | |
| Board Thickness | 0.3~4.0mm | |
| Layers | 8 | |
| Material | FR-4 TG150, PI,MEGTRON MATERIAL | |
| Copper Thickness | 0.5~4oz | |
| Material Tg | 150 | |
| Max PCB Size | 600*1200mm | |
| Min Hole Size | 0.2mm (+/- 0.025) | |
| Surface Treatment | HASL, ENIG, OSP |
Product Description
White Silkscreen 8 Layers FR4 Multi Layer PCB Board Green Solder Mask
Professional PCB Assembly, PCBA OEM,ODM,PCBA Manufacturing;Components sourcing&components Alessembly
1. Features
1.One Stop OEM Service, Made in Shenzhen of China
2.Manufactured by Gerber File and BOM List from Customer
3.Components procument
4.Components Assembly
5.Box building and testing
6.FR4 Material, Meet 94V0 standard
7.SMT, DIP technology suport
8.Lead Free HASL, Environmental Protection
9.UL, CE, ROHS Compliant
10.Shipping By DHL,UPS, TNT, EMS or Customer requirement
2. PCB&PCBA Technical capability
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |
| Max. component height::25mm | |
| Max. PCB size:680×500mm | |
| Min. PCB size:no limited | |
| PCB thickness:0.3 to 6mm | |
| PCB weight:3KG | |
| Wave-Solder | Max. PCB width:450mm |
| Min. PCB width: no limited | |
| Component height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum | |
| Surface Finish:plating Au, plating sliver , plating Sn | |
| Air bladder rate:less than20% | |
| Press-fit | Press range:0-50KN |
| Max. PCB size:800X600mm | |
| Testing | ICT,Probe flying,burn-in,function test,temperature cycling |
