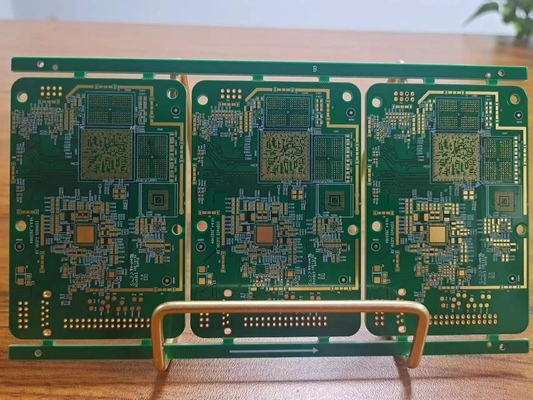

Multilayer Printed Circuit Board For Automotive Consumer Electronics
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Automotive Multilayer Printed Circuit Board,Electronics PCB Printed Circuit Board,Medical Devices Multilayer PCB |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
| Items | Standard | Advanced | |
|---|---|---|---|
| Fr4 max. layers. count | 1~24 | 26~36 | |
| HDI max. layers. count | 4~20L (3+N+3) | 22~32 (3+N+3) | |
| D/S(NPTH) max. panel size | 21.5*24.5"(546*622mm) | 21.5*59"(546*1500mm) | |
| S/S(NPTH) max. panel size | 21.5*24.5"(546*622mm) | 21.5*49"(546*1245mm) | |
| multilayer max. panel size | 21.5*24.5"(546*622mm) | 21.5*49"(546*1245mm) | |
| min. piece size | 5*5mm | 2*2mm | |
| max. overall board thickness | 158mil (4mm) | 394mil (10mm) | |
| Min. Overall Board or Core Thickness | 8mil (0.200mm) | 3mil (0.075mm) | |
| ≤ 1.0mm PCB`s Boards Thickness Tolerance | ±3mil (0.075mm) | / | |
| ≤ 2.0 mm PCB`s Boards Thickness Tolerance | ±5mil (0.13mm) | / | |
| Max. Aspect Ratio | 15:01 | / | |
| FR-4 Min. DHS (Drill Hole Size) | 6mil (0.15mm) | / | |
| HDI Min. DHS (Drill Hole Size) | 0.08-0.10MM | / | |
| Min. Hole to Hole Distance | 10mil (0.25mm) | 6mil (0.150mm) | |
| PTH Hole Size Tolerance | ±3mil (0.076mm) | ±2mil (0.050mm) | |
| NPTH Hole Size Tolerance | ±2mil (0.050mm) | ±1.5mil (0.040mm) | |
| Hole Location Tolerance | ±3mil (0.076mm) | ±2mil (0.050mm) | |
| Min. Line Width/Space---Inner Layer---1/3 oz | 2.5/2.5mil (0.0635/0.0635mm) | 2/2mil (0.0508/0.0508mm) | |
| Min. Line Width/Space---Inner Layer---1oz | 4/4mil (0.100/0.100mm) | 3.0/3.0mil (0.089/0.089mm) | |
| Min. Line Width/Space---Outer Layer---Hoz+Plating | 4/4mil (0.100/0.100mm) | 3.5/3.5mil (0.089/0.089mm) | |
| Min. Line Width/Space---Outer Layer---1oz+Plating | 5/5mil (0.127/0.127mm) | 4/4mil (0.100/0.100mm) | |
| Min. Line Width/Space---Outer Layer---2oz+Plating | 6/6mil (0.150/0.150mm) | 5/5mil (0.127/0.127mm) |
Product Description
Multilayer Printed Circuit Board For Automotive Consumer Electronics
Multilayer PCB, ISO9001, UL Approved Shenzhen Factory
1. Up to 32 layers;
2. Back drilling can reduce the loss on signal transmission.
Application of PCB Printed Circuit Board:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Smart Home
10, Industrial Automation
11, Medical Devices
12, New Energy
And so on
